"University" Glove Box

810-Series
2 year warranty badge

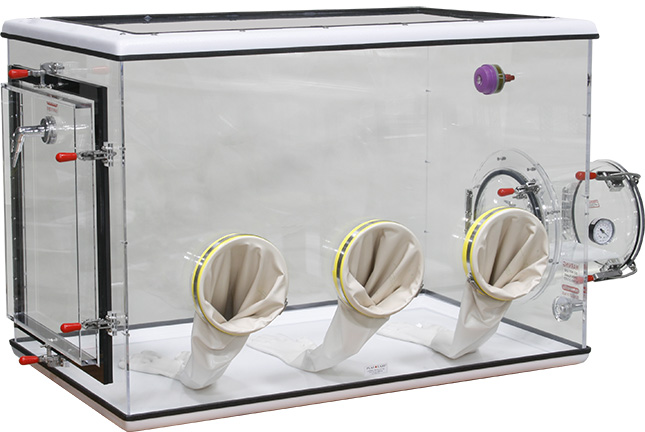

Completely sealed glove box for basic isolation and/or containment!

The 810-SG Series by PLAS-LABS are constructed of an optically clear material, developed for isolation and / or containment. All units feature a high visibility of the interior, cleanliness, safety, complete containment, portability and a draft-free atmosphere. The installed purging valves are ideal for lowering oxygen and humidity levels.

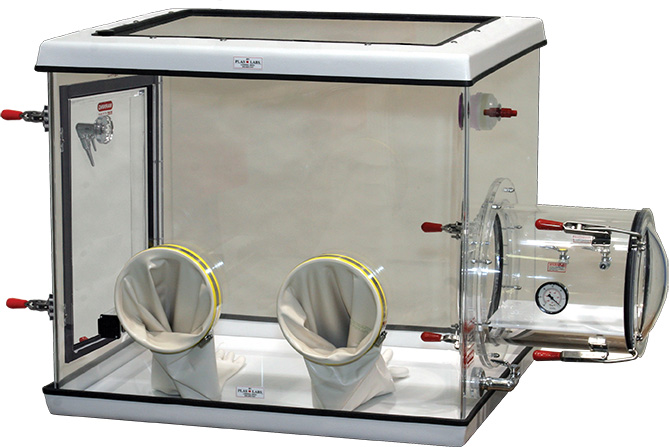

Transfer chamber AND flat access door included to easily introduce larger equipment into the glove box.

Watch informative video on "Compact" glove box here.

Standard Features of the "University" Glove Box:

  • Completely sealed glove box requires less gas. Lower operational expenses.
  • Transfer chamber with purging valves and vacuum gauge.
  •  Flat side access door for easily introducing larger equipment.
  •  Four (4) key cock valves for purging.
  • Hospital grade outlet strip.
  • Pressure relief valve with small HEPA canister.
  • Standar twenty-four (24) month warranty. (Not on consumables).
  • White ambidextrous gloves.
  • Flat side access door for introducing larger equipment into the glove box.
  • Four (4) standard sizes available.  Customization is also available.

Need a Quote?



Contact Us

Specifications










810-SG10

Inside Dimensions:
28"w x 23"d x 29"h
710mm x 580mm x 740mm h

Outside Dimensions (Includes transfer chamber 12" long)
43"w x 24"d x 31"h
1,100mm x 610mm x 790mm h

Access Door Opening:
15.5" x 22"h
400mm x 560mm

Number of gloves:
Two (2)

810-SG20

Inside Dimensions:
35"w x 29"d x 30"h
890mm x 740mm x 760mm h

Outside Dimensions (Includes transfer chamber 12" long)
49"w x 30"d x 31"h
1,250mm x 760mm x 790mm h

Access Door Opening:
21.5" x 22"h
546mm x 560mm

Number of gloves:
Two (2)









810-SG30

Inside Dimensions:
48"w x 29"d x 32"h
1,220mm x 740mm x 810mm h

Outside Dimensions (Includes transfer chamber 12" long)
63"w x 31"d x 35"h
1,600mm x 790mm x 860mm h

Access Door Opening:
21.5" x 24"h
546mm x 610mm

Number of gloves:
Three (3)


810-SG40

Inside Dimensions:
60"w x 29"d x 32"h
1,524mm x 740mm x 810mm h

Outside Dimensions (Includes transfer chamber 12" long)
76"w x 32"d x 35"h
1,930mm x 812mm x 890mm h

Access Door Opening:
21.5" x 24"h
546mm x 610mm

Number of gloves:
Four (4)

Electrical requirements

silhouette of the united states
North America
Model Number:  810-Series

Electrical Requirements
115-120 volts, 60 Hz., 12 Amps.
silhouette of the globe
Export
Model Number:  810-Exp Series

Electrical Requirements
220-240 Volts, 50 Hz. 5 Amps
Single HEPA Filtration.  Provides HEPA filtered air into OR out of the glove box.

800-HEPA/S

Single HEPA Filtration. Provides HEPA filtered air into OR out of the glove box.

Double HEPA Filtration system provides HEPA filtered air into AND HEPA filtered air out of the glove box through two (2) 8" round HEPA filters.

800-HEPA/D

Double HEPA Filtration system provides HEPA filtered air into AND HEPA filtered air out of the glove box through two (2) 8" round HEPA filters.

Closed-Loop, Double HEPA filtration system continuously circulates the internal atmosphere through two (2) 8" round HEPA filters.

800-CLC

Closed-Loop, Double HEPA filtration system continuously circulates the internal atmosphere through two (2) 8" round HEPA filters.

HEPA Filtration Options

We offer three (3) models of the #830-SERIES glove boxes featuring HEPA filtration packages. There are two (2) different versions available.  NOTE: All three models include the same basic #810-Series features and are available in four (4) sizes.

“Closed Loop Style” CLC Style.
This system continually re-circulates and filters the
internal atmosphere of the glove box. It is a negative pressure containment unit. Magnehelic™ gauges indicate both inner chamber pressure and pressure drop levels across the filters. These gauges indicate when it is time to change the HEPA filters. Add 15.5” (395 mm) to the overall height of this style glove box.

What’s included with the “Closed Loop” CLC-Style glove box:
  •  Totally enclosed blower (fan) unit.
  •  Two (2) cylindrical 8” inch Ø (203 mm) HEPA filters.
  •  Two (2) Magnehelic gauges. Domestic models in Inches of H2O and Export in Pascals.
  •  All necessary hoses and connections.
  •  Non-Hydroscopic pre-filters.
  •  Standard 24 month warranty (Not gloves or consumables).

“Open Exhaust Style” (Two filter versions)
These glove boxes draw the ambient room atmosphere through a HEPA filter and then into the chamber. Both versions are set up for negative pressure operations. Exhaust atmosphere is filtered through a HEPA or 5μ (micron) glass media filter. The “open exhaust” outlet can be set up to connect to your house exhaust system. Please specify a #800-VENT outlet accessory.

Compact Glove Box additional variations

The #810-SERIES of glove boxes can be modified to create different variations.

Access doors can be substituted for transfer chambers. Sizes of the doors vary according to the size of the glove box.

Exhaust (4” [102 mm] Ø) vents may also be added for connecting to your house exhaust system.

Square (box type) transfer chambers can be substituted for cylindrical (round) ones. Square transfer chambers have pressure limitations however. NOTE: The maximum working pressure on the square transfer chambers is 6” of WC (150 mm). It is not engineered to support negative pressure.

We now offer a new automatic door locking system for these transfer chambers. Catalog #800-DOOR/ILOCK.


830-CP/10


The 830-CP/10 includes a flat side access door (no transfer chamber)

If transfer chamber AND flat side access door are required, please refer to the 810-Series


830-CP/20




The 830-CP/20 includes a flat side access door (no transfer chamber).



For more information on the 830-CP Series glove box, click here.

Custom Capabilities



Plas-Labs is committed to providing high quality research equipment at a fair price. We realize that unique research protocols may require individualized equipment. We offer the following special services:
  •  Design Engineering.
  •  Custom Service/Maintenance Schedules.
  •  CAD Drawings.
  •  New Product Development.
  •  Customized Operator Manuals.
  •  F.A.T. Documentation.
  •  I.Q. & O.Q. Documentation.
  •  Third Party Certification.
  •  On Site Training.
  •  Various Materials of Construction, Eg., Light Sensitive Protection, Stainless Steel, Static-Dissipative Acrylic, Clear PVC, and PETG.
For more information on our custom capabilies, please contact us.
