- Designed and created to facilitate the simulations and study of many basic land forms.
- Increased knowledge about the worlds significant land formations developed by streams and rivers.
- All stream tables include the wave maker.
- Several accessories available; wave makers, crustal stress simulators, rain fall simulators, contour grid, and more.
- Universities and research facilites around the world are using the Plas-Labs' stream tables.
Stream Tables

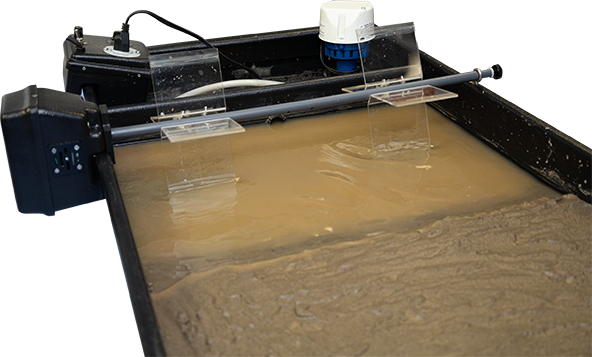

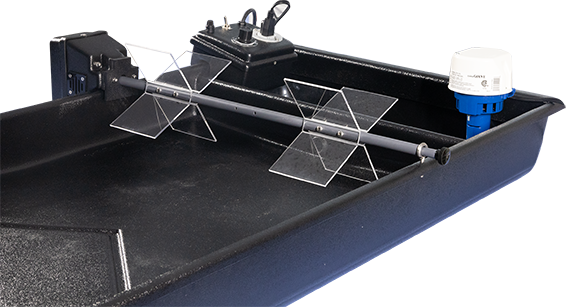

The PLAS-LABS' Stream Tables and Land Form Systems were designed and created to facilitate the simulations and study of many basic land forms for Earth Science. Students at universities, colleges, and high schools are also using the Plas-Labs' Stream Tables to help increase their knowledge about the world's significant land formations developed by streams and rivers. The Wave Maker comes complete with all Steam Table packages. The Wave Maker allows formation of sand bars along the lake edge, with adequate water level and sediment size. "Up-Lifted" beach terraces can be formed or eroded, in succession with the lake level. The Wave Maker allows the study of beach erosion, bays, sand bars and simulating waves approaching jetties or other shoreline formations.
Standard Features of the Stream Tables:
Specifications
Model Number
What's included
Table Dimensions
105-RT, Regular Stream Table
Wave maker with motor, shaft and paddles, power pack, water pump, and hose.
60" long x 20" wide x 6" deep
106-ST, Super Stream Table
Wave maker with motor, shaft and paddles, power pack, water pump and hose.
70" long x 26" wide x 6" deep
150-WRS, Regular Stream Table Complete with Land Form System
Regular Stream Table, wave maker, rainfall simulator, and contour grid.
60" long x 20" wide x 6" deep
160-SS, Super Stream Table Complete with Land Form System
Super Stream Table, wave maker, rainfall simulator, contour grid, crustal stress simulator, sedimentation chamber and deposition trough.
70" long x 26" wide x 6" deep
Electrical requirements
North American
Model Number: Stream Table Series
Electrical Requirements:
115-120 Volts, 60 Hz. 12 Amps
Export Model
Model Number: Stream Table Series EXP
Electrical Requirements: 220-240 Volts, 50 Hz. Amps will vary based on country.
Stream Table Accessories:

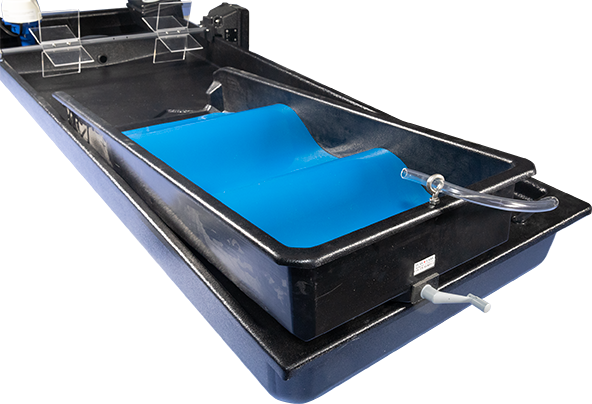

Crustal Stress Simulator
The Crustal Stress Simulator allows the study of changes in the earth's crust. The flowing stream may develop a fold in the earth's crust, forming water gaps, ponds, and trellis drainage patterns.
154-CS, Crustal Stress Simulator

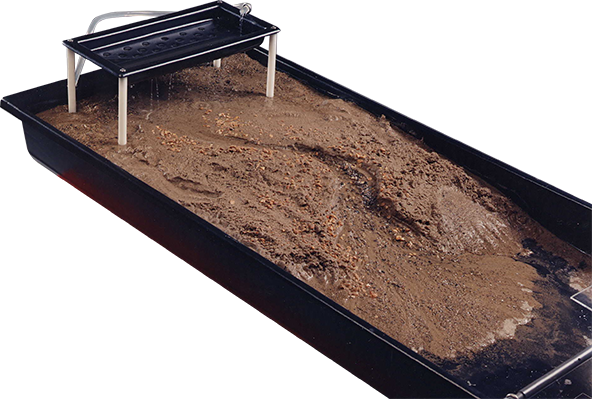

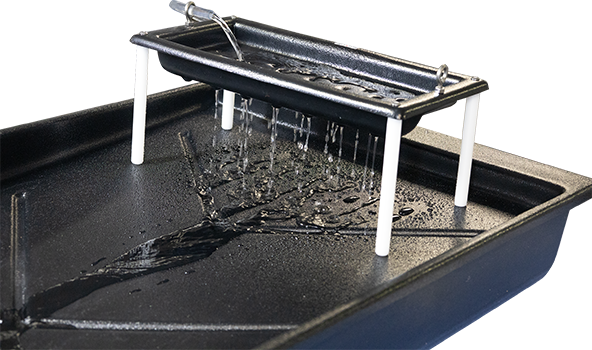

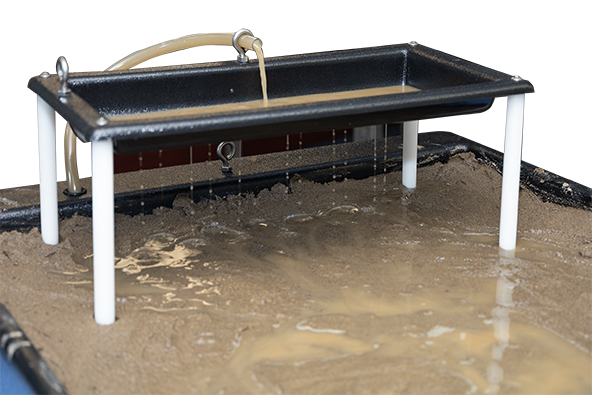

Rainfall Simulator
The Rainfall Simulator allows the user to obtain a more advanced climate in the study. The two-tiered simulator permits the user to produce a "heavy downpour" or a "gentle rain". The amount of water placed in the simulator can be maintained by the Power Pack.
152-RM, Rainfall simulator
Contour Grid

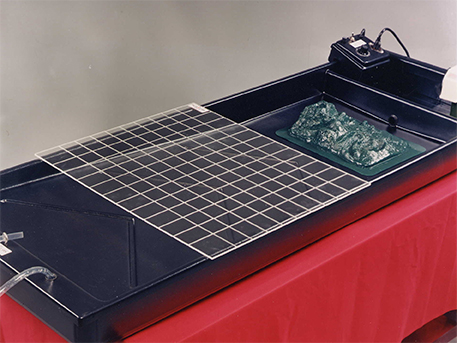

The Contour Grid contains etched 5 cm squares for plotting changes and sediment deposits. You may outline the stream course on the grid. As water flows through the stream, altering its course, you may then compare the bank changes, sediment deposits, stream accuracy and interpretation.

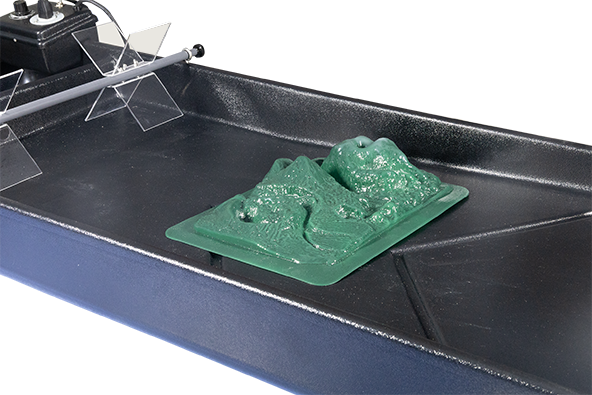

Terrain Feature Model

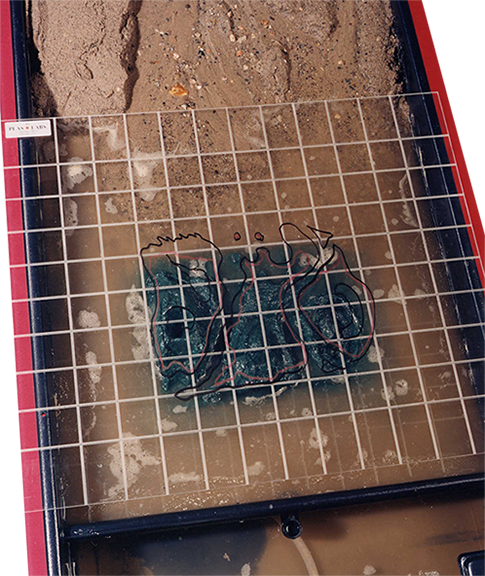

The Terrain Feature Model placed in the lake area of the stream table, the Contour Grid System permits tracing of waterline contours of successive depths. The result is a topographic map whose detail is dependent up the contour interval. Terrain Feature Model includes replicas of a young river, volcano, mountain peak, meandering river, an "Oxbow" lake, and a receding shoreline.
153-CGR, Contour Grid for Regular Table with 151-TM Terrain Feature model.
