"Nitrogen Dry Box"

850-Series
2 year warranty badge

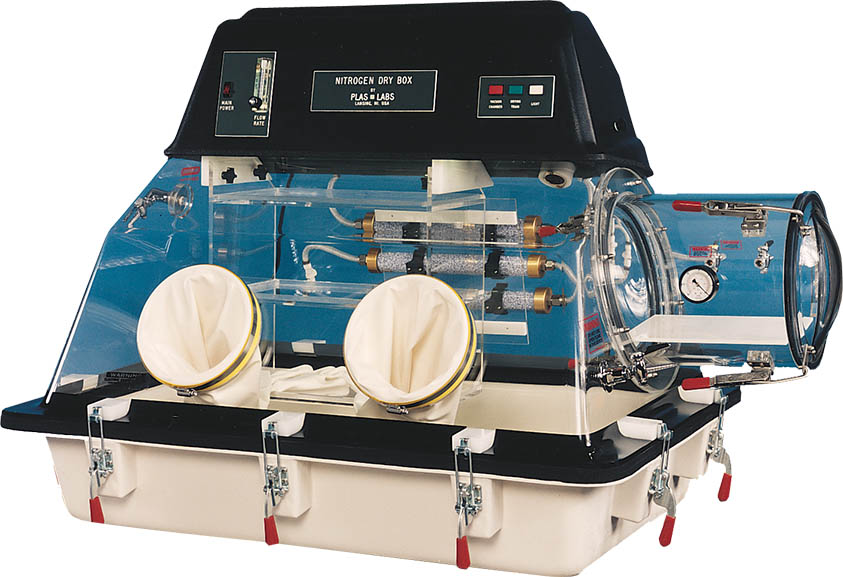

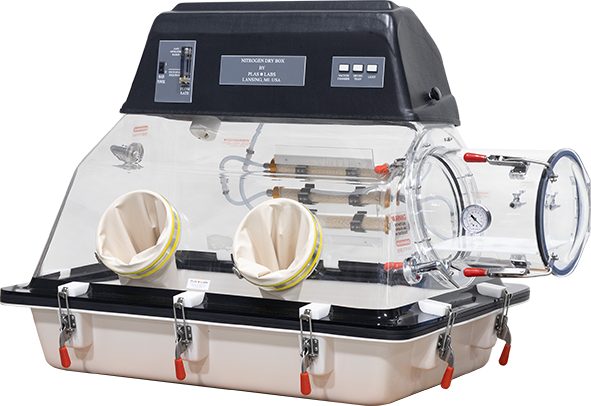

Our #850-NB “Nitrogen Dry Box” is a completely enclosed environmental chamber ideal for working in your preferred inert gas atmosphere. Any inert gas such as Nitrogen, Argon, Helium and Plasma are easily maintained.

The unit is compact, lightweight, and portable. The design makes it easily moveable from lab to lab. Everything you need is included with the glove box. All you need to add is your gas of choice and your preferred research materials.

Standard Features of the "Nitrogen Dry Box":

  •  Standard 24 month warranty (Not gloves or consumables.)
  • Formed one piece clear acrylic top section with rounded  “Easy Clean” corners.
  • Matched die molded white thermoset bottom with rounded “Easy Clean” corners.
  •  Two (2) vacuum diaphragm pumps. One each for the drying train and transfer chamber.
  •  The drying train includes three (3) clear acrylic canisters filled with Molecular Sieve™.
  •  Transfer chamber is 12” (305 mm) long x 11” (280 mm) I.D.
  •  All controls are illuminated.
  •  “Bright Light” system (40,000 hour lamp guarantee).
  •  White ambidextrous Hypalon™ gloves.
  •  All clamps are adjustable to compensate for wear.
  •  The front sloped viewing panel minimizes glare.
  •  Vacuum gauge on transfer chamber.
  •  Self sealing quick disconnects enable changing of the drying train canisters without disturbing the internal atmosphere.
  •  Four (4) ground key cock valves for purging.
  •  Transfer chamber leveling tray for handling liquids.
  •  Hospital grade multiple electric outlet (socket) strip. UL, CSA, and CE approved.

Need a Quote?



Contact Us

Specifications




850-NB

Inside Dimensions
41”w x 28”d x 26”h.        1,040mm x 710mm x 660mm h

Outside Dimensions (includes transfer chamber 12" long)

55”w x 35”d x 38”h.        1,400mm x 890mm x 970mm

Volume:
17.3 Cubic Feet.        489 Liters

Appx. Ship Weight:
450 pounds.        205 kilos




850-NBB

Inside Dimensions

60”w x 38”d x 31”h.        1,520mm x 960mm x 790mm


Outside Dimensions (includes transfer chamber 12" long)

76”w x 47”d x 42”h.        1,930mm x 1,190mm x 1,070mm

Volume:
40.9 Cubic Feet.        1,157 Liters

Appx. Ship Weight:
680 pounds.        311 kilos

Electrical requirements

silhouette of the united states
North American
Model Number: 850-Series

Electrical Requirements:  115-120 volts
60 Hz. 12 Amps
silhouette of the globe
Export Models
Model Number:  850-Exp Series

Electrical Requirements:  220-240 volts
50 Hz. 5 amps

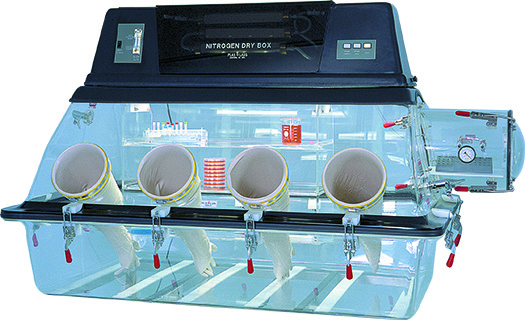

Nitrogen Dry Box for Multiple Operators

The #850-NBB is our Nitrogen Dry Box for two (2) operators. It can be set up
for up to four (4) operators. It includes all of the same features as our #850-NB,
but it has six (6) drying train canisters and two (2) vacuum diaphragm pumps.
NOTE: The unit as shown includes optional accessories #800-SHELF-II.




850-NBB Multiple-user dry box with optional suspended shelf package.
NOTE:  800-SHELF II is sold as an accessory.

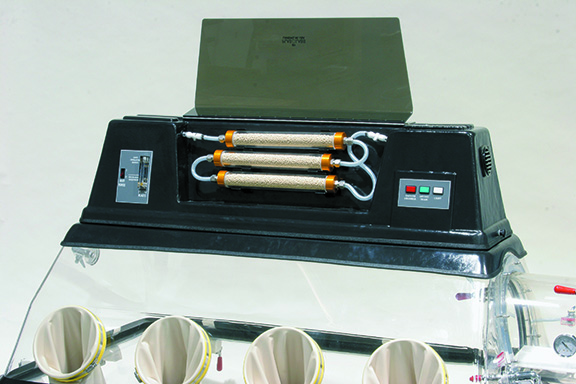

The 850-NBB includes six (6) drying train canisters
and vacuum pump.

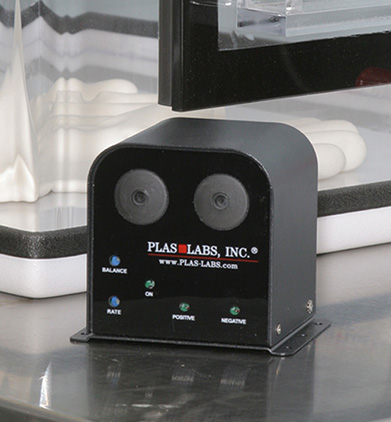

The #800 AS/SPI “Counter SPI” ionizer emits alternating positive and negative Ions that eliminate static electricity within the glove box. It is non-air assisted (no fan), so there is no atmosphere turbulence inside the chamber. Additionally, no particle

contaminants are introduced because of the ionizer.

This device is perfect for working with fine powders and chemicals.
