Hypoxia Chamber

856-Series
2 year warranty badge

This new Hypoxia Chamber Glove Box is ideal for tissue culture work, including tumor cell and stem cell research. It features a color operated “touch screen” for automatically controlling oxygen levels, temperature levels, and carbon dioxide levels.

The 856-Series is ideal for stem cell and cancer cell research!

Standard Features of the Hypoxia Chamber:

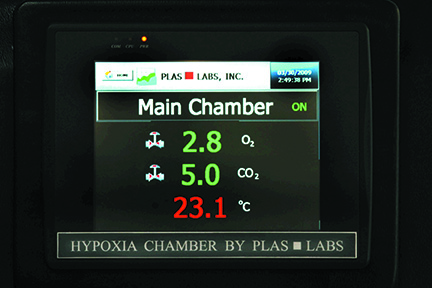

  •  8” Color Panel Touch Screen.
  •  O2 sensor and CO2 sensor.
  • Platinum RTD with sealing gland.
  •  N2, CO2, and O2 gas hook-up.
  •  Inert gas hook-up.
  •  Ethernet port connection for data-logging.
  •  Thermoelectric Assembly (Peltier device).
  •  Password protected, configurable PID control.
  •  One touch, on screen data-logging.
  •  Air circulation fan.

Need a Quote?



Contact Us

Specifications

Inside Dimensions:
41" w x 28" d x 26" h
1,041mm x 711mm x 660mm

Outside Dimensions, (includes 12" long transfer chamber)
55" w x 35" d x 38" h
1,397mm x 889mm x 965mm h

Oxygen Range:                          0-25%        Accuracy:  ±0.25%

Carbon Dioxide (C02) range:    0-20%        Accuracy:  ±0.2%

Temperatrue Range:                  ambient to 40°C       Accuracy: ±0.3°C

Parameter Control:                     ±11% or degree of set point



Electrical requirements

silhouette of the united states
North American

Model Number:  856-Series
Electrical Requirements:  115-120 volts, 60 Hz. 12 Amps
silhouette of the globe
Export

Model Number:  856-Exp Series
Electrical Requirements: 220-240 volts, 50 Hz. 5 Amps
