Lab CO2 / Vacuum Chambers

The modest cost of these units enables the investigator to easily dedicate one chamber for one specific research project.

These superb cabinets have superior strength and sealing characteristics, utilizing heavier gauge transparent acrylic plastic with formed top corners to minimize section joints.

The structural integrity of the cabinets ensures economy in the cost of operation. After the initial gas purge to clear a cabinet loaded with sensitive components, gas consumption is reduced to an absolute minimum. This is because the cabinet will not flex or deform resulting in gas leakage. When pressurized with an inert gas, no significant change in pressure level occurred over a five (5) day test.

Product Benefits

  • Low to medium vacuum maintenance. Down to -25” of Hg.
  • Useful for degassing and freeze drying processes.
  • Easy for transporting contamination and moisture sensitive components.
  • Can be used in the vertical or horizontal positions.
  • Complete transparency gives visual awareness of your project materials.

Standard Features of the Lab CO2 / Vacuum Chambers:

  • Standard 24 month warranty.
  • Heavy gauge .375” and .500” thick transparent jeweled acrylic plastic.
  • Spring steel tension clamps for uniform gasket pressure.
  • Non slip feet for stacking.
  • Closed cellular (one piece) gasket.
  • Unique “gasket guard” system to prevent gaskets from taking a “set.”
  • Lightweight, easily transportable. Handles are available.
  • Shelves are spaced at 2” (50.8 mm).
  • Adjustable perforated shelves for complete atmosphere movement throughout the chamber.
  • Nylon inlet and outlet gas nipples, hose barb style, size 1/8” & 1/4” hose barbs.

Need a Quote?



Contact Us

Specifications

Model Number:                     850-LCS                     850-LCM                850-LCL
Sizes:                                     12" x 12" x 6"                12" x 12" x 12"         12" x 12" x 24"
Number of shelves:              Two (2)                         Two (2)                    Four (4)
Number of cubicles:             One (1)                          One (1)                    Two (2)

Larger sizes are available.


Electrical requirements

silhouette of the united states

No electrical included.

silhouette of the globe

No electrical included.

Vacuum Chambers

These fine vacuum chambers are similar in design to our glove box transfer chambers that have been used for over fifty (50) years. Custom sizes and shapes are available.

800-VAC/S
Volume:  1350 Cu. In.
Size:  14 x 12" OD

800-VAC/L
Volume:  3200 Cu. In.
Size: 14" x 18" OD



800-VAC/S, vertical configuration set-up

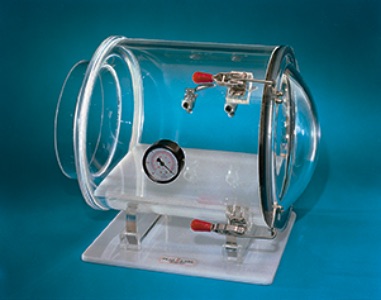

800-VAC/S, Horizontal Configuration set-up
